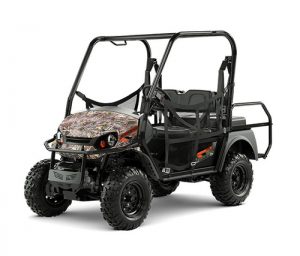

E-Z-GO Express 4 x 4

Note: Vehicle pictured may include optional extras available at a cost.

E-Z-GO Express 4 x 4

E-Z-GO Express 4 x 4

Full-time 4 wheel drive and self-compensating braking system.

NOTE: This vehicle can have back bench seat removed and replaced with a utility tray.

Description



E-Z-GO Express 4 x 4

The Express 4 x 4 delivers a whisper quiet ride powered by an energy-efficient 72 Volt AC electric drivetrain.

With a full-time 4WD and self-compensating brake system, the Express 4 x 4 is ready for any terrain you encounter.  This unique design guarantees a smooth, powerful drive you’ll want to take on every excursion.

Standard Features

  • 72-Volt AC Electric Drive Train
  • 4-Wheel Hydraulic Disc Brakes with IntelliBrake
  • Forward Facing Bench Seat &
  • Convertible Rear Facing Seat
  • Dash-Mounted Max Speed/Max
  • Range Switch
  • Functional Dash
  • Comfortable, Contoured Seats
  • 25-inch Aggressive Tread Tires
  • Fold-Down Cargo Deck

Dimensions

Overall Length: 284 cm
Overall Width: 134.6 cm
Overall Height (with canopy): 195.1 cm
Wheel Base: 175 cm
Ground Clearance: 42 cm at Centre of Frame, 25 cm Under Axle
Hitch: Standard 2 Inch Hitch (5 cm) Receiver

Power

Power Source: 72 Volts SC
Motor Type: 72 Volt Front and Rear
Horsepower: 38 HP
Drivetrain: 72 Volt AC Electric
Battery (Qty/Type): Six, 12 Volt Heavy Duty Deep Cycle
Regenerative Braking: Yes
Battery Charger: 72 Volt Off-Board
Differentials:  Open
Gear Selection: Dash Mounted Forward-Neutral-Reverse

Performance

Seating Capacity: 4 Person
Max Vehicle Capacity: 381 Kg
Towing Capacity:  453.6 Kg
Max Speed Mode (level ground): 39.4 kph ± 0.8 kph
Max Range Mode (level ground): 25.7 kph ± 0.8 kph

Steering & Suspension

Steering: Rack and Pinion
Front Suspension: Independent MacPherson Struts
Rear Suspension: Solid Leaf Springs
Service Brake: 4 Wheel Hydraulic Disc Brakes with Intellibrake
Parking Brake: 4 Wheel Hydraulic Disc Brakes with Intellibrake
Front Tyres: Carlise Trail Pro Tyres 20x 8- 12 Uni Directional
Rear Tyres: Carlise Trail Pro Tyres 20x 10- 12 Uni Directional

Body & Chassis

Frame: Structurally Welded High Strength Steel
Standard Colour: Jet Black
Optional Colours: True Timber | Kanati Camo

Features

Instrumentation: In-Dash Battery Status Indicator, 12 V Outlet
Lighting: Hi & Low Beam – Single Rear Taillight/stop Light
Seating: Forward Facing Bench Seat, Convertible Rear Facing Bench Seat
Storage Compartments: Fold Down Cargo Deck, Glove Box

Optional Extras

  • All Weather enclosures (Clear or Tinted)
  • Mag Wheels
  • (BWT) Battery Watering System – for ease of battery maintenance

Delivery

Delivery can be arranged Australia wide.

FREE local delivery.
