EMC Dingo SWB 2 Seat Sedan

Note: Vehicle pictured may include optional extras available at a cost.

EMC Dingo SWB 2 Seat Sedan

The EMC Dingo offers a reliable, robust and rugged solution to commercial transportation needs; well suited to the harsh Australian climate.

Description

This 2 seat electric vehicle offers the perfect combination of toughness and efficiency to meet your mobility needs.  Ideal applications include any airport, sports grounds and stadiums, resorts, hotels, tourist attractions and other commercial complexes.

We can offer 3 different models:

  • Dingo SWB 2 Door Sedan
  • Dingo LWB 4 Seat Sedan
  • Dingo LWB 2 Seat Short Tray Utility

The vehicles are fitted with doors, laminated glass windscreen, electric wiper, head and tail lights and turn indicators.

Standard Features

KEY COMPONENTS AND PERFORMANCE

Motor: 7.0 kW AC Electric
Power Source:72v Deep Cycle Trojan Batteries
Controller:Programmable Curtis Controller
Motor Type:Shunt Wound

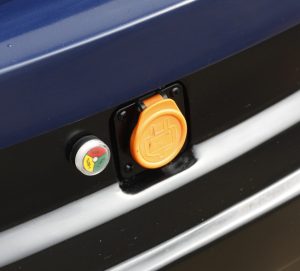

Battery Charger:Integrated Delta-Q On-Board Smart Charger
Max Speed:Pre set to 20 km/h
Max Charge Time:8hr
Range (Loaded):> 90km
Turning Circle:4.5m

CAPACITY

Seating: 2 Seats
Vehicle Weight:775 kg (including batteries)

DIMENSIONS

Overall Length: 2400 mm
Overall Width:1500 mm
Overall Height:1720 mm
Ground Clearance:170 mm

BODY AND FRAME

Chassis / Frame: Powder Coated Welded Steel
Body:Fibreglass and Plastic
Roof:Fibreglass
Windshield:Laminated Glass with Twin Wipers
Doors:Steel Frame, Plastic Inserts and Sliding Windows

STEERING AND SUSPENSION

Steering: Single-Stage Rack and Pinion Steering System. Automatic Rocker Compensating Function
Front Suspension: Independent Suspension, Helix Spring and Shock Absorber
Rear Suspension: Semi Independent – Torsion Beam
Brake System: 4 Wheel Hydraulic – Front Disc – Rear Drum
Park Brake: Hand Brake

  •  Laminated Glass Windscreen
  • Headlights – Low/High Beam
  • Tail Lights, Blinkers, Horn
  • Speedometer/ Odometer/ Battery Gauge
  • 14.5″ Alloy Wheels
  • 2 Point Seat Belts
  • 2 x Side Mirrors
  • 12v Outlet for Accessories

Please note: specifications above are subject to change at any time.

Optional Extras

  • Air Conditioning – Cooling and Heating
  • Reverse Camera
  • Lead Crystal or Lithium Battery Upgrade Kit
  • 3 Point Retractable Seat Belts
  • Amber Light Bar with Siren and Microphone
  • Fire Extinguisher
  • Corporate Branding
  • Single Point Watering System
  • Roof Racks
  • Flashing Amber Beacon
  • Adjustable Front Seats
  • Audio Unit

Delivery

Delivery can be arranged Australia wide – excluding WA.

Lead time depends on stock availability at time of ordering.  Usually 2 – 3 weeks.
