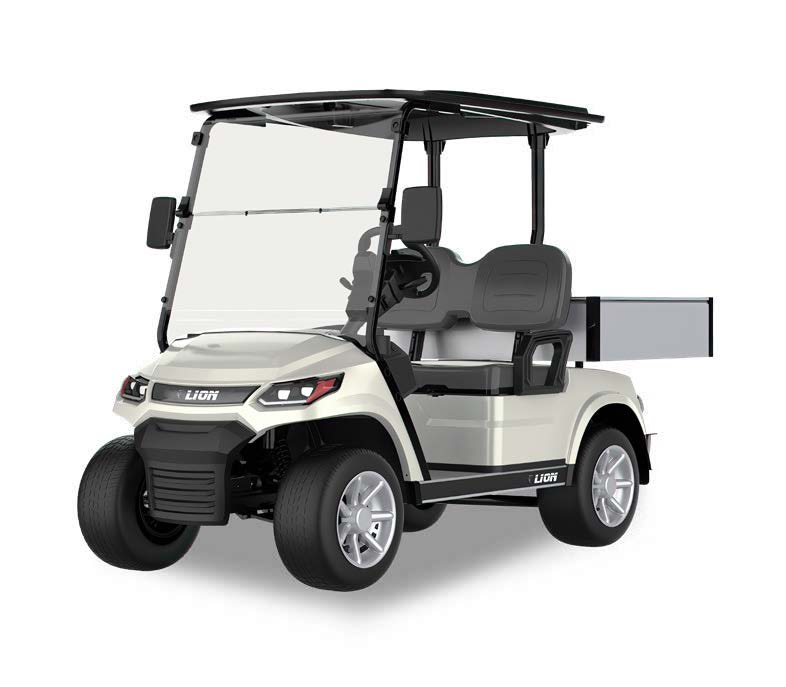

LION SENTRY

Standard Features

STANDARD INCLUSIONS
• Metallic bodywork
• Deluxe LED lighting system
• Seatbelts
• Speedometer & state of charge meter
• Mag wheels
• Onboard charger
• Dual USB port
• Mirrors
PERFORMANCE
• Seating – 2 person
• Max speed – Adjustable up to 25KPH
• Turning circle – 3.2m
• Climbing availability – 25%
• Brake distance – <5m
KEY COMPONENTS
• Advanced 105ah Lithium pack OR Advanced 150ah HD Lithium Pack
• 350A LEV AC Controller
• Motor – 4.0KW AC motor
• Matched RCM complied charger
DIMENSIONS
• Length – 2750mm
• Width – 1210mm
• Height- 1830mm
• Weight – 440kg w/105ah battery or 465kg with 150ah battery
• Ground clearance – 210mm
• Tray size 1000mm(L) 1150mm(W) 265mm(H)
LOAD RATINGS
• Tray capacity 120kg
• Towing capacity 220kg
BRAKING/SUSPENSION/STEERING
• Hydraulic 4 wheel disc brakes
• 10’’ alloy mag wheels
• 205/65-10 4 ply tyres
• Electro magnetic park brake
• Fully independent suspension
• Rack & pinion steering

Optional Extras

OPTIONAL EXTRAS:
• Rotating beacon
• Tailor made all weather curtains
